Description
- BATTERY – Unlock Power and Efficiency with the Pylontech UF5000 – Your Ultimate Li-Ion Battery Solution.

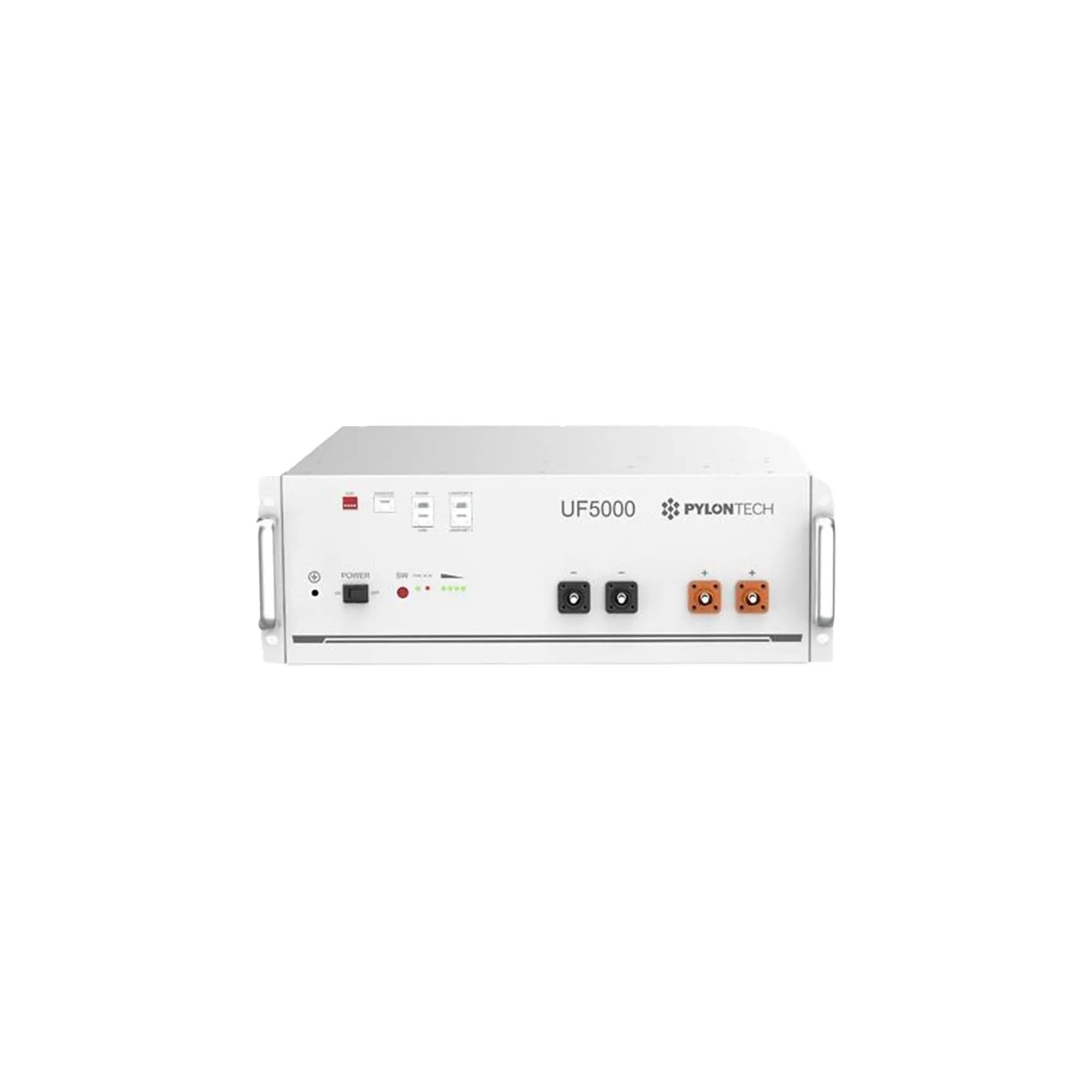

- Introducing the Pylontech UF5000, a cutting-edge 5.12 kWh Li-Ion Battery designed to redefine your approach to energy storage.
- Pylontech has once again revolutionized the game with this innovative battery, featuring a modular design for effortless expansion, higher usable capacity, and intelligent Battery
- Management System (BMS) protection.
- 5 years warranty
- Nominal Voltage (Vdc):51.2
- Nominal Capacity (kWh):5.12
- Usable Capacity (kWh):4.864
- Dimension (mm):442×452.6×161
42kg - Discharge Voltage (Vdc):45.6-56.8
Charge Voltage (Vdc):56-56.8 - Recommended Charge/Discharge current (A):100
m - Max, continuous Charge/Discharge current (A):100
- Peak Charge/Discharge current (A):105-109@15 min / 120-200@15 sec
- Communication Port:RS485,CAN
- Configuration (max in 1 Battery Group):20 pcs
- Working Temperature:-10°C->55°C
- Storage Temperature:-20°C->60°C
Short Current/ Duration Time:Cooling type:Natural - IP Rating:IP20
- Humidity:5%-95% (RH) No Condensation
- Altitude (M):6,000 25 °C
